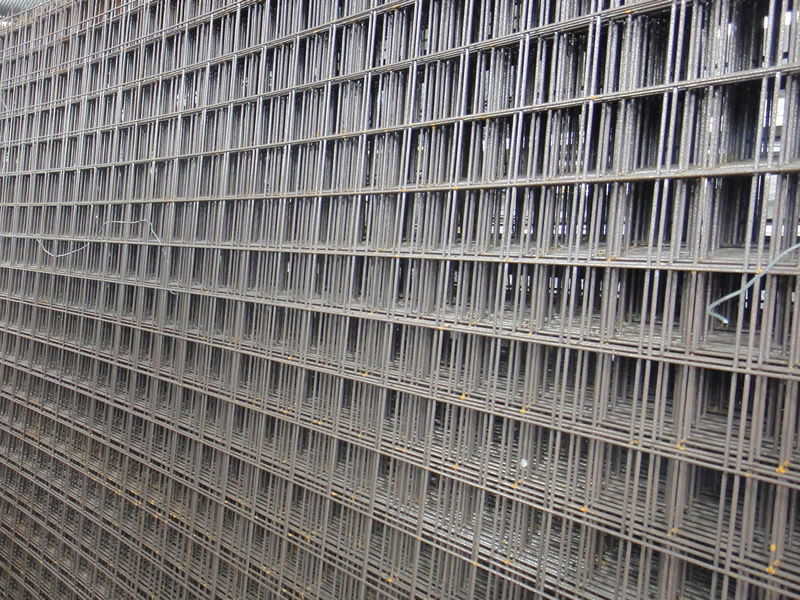

Tela Soldada - Aço CA60 | |||||
Desig. | Espac. Fios (cm) | Diâmetro dos Fios (mm) | Peso | Rolo | Peso |
LG x TR | LG x TR | Kg/m² | Painel | Kg/r/p | |
Q 61 | 15 x 15 | 3,40 x 3,40 | 0,97 | Rolo | 285,18 |
Q 75 | 15 x 15 | 3,80 x 3,80 | 1,21 | Rolo | 355,74 |
Q 92 | 15 x 15 | 4,20 x 4,20 | 1,48 | Rolo | 217,56 |
Q 92 | 15 x 15 | 4,20 x 4,20 | 1,48 | Painel | 21,76 |
Q 113 | 10 x 10 | 3,80 x 3,80 | 1,80 | Rolo | 264,60 |
Q 113 | 10 x 10 | 3,80 x 3,80 | 1,80 | Painel | 26,40 |
Q 138 | 10 x 10 | 4,20 x 4,20 | 2,20 | Rolo | 323,40 |
Q 138 | 10 x 10 | 4,20 x 4,20 | 2,20 | Painel | 32,34 |
Q 159 | 10 x 10 | 4,50 x 4,50 | 2,52 | Painel | 37,04 |
Q 196 | 10 x 10 | 5,00 x 5,00 | 3,11 | Painel | 45,72 |
Q 246 | 10 x 10 | 5,60 x 5,60 | 3,91 | Painel | 57,48 |
Q 283 | 10 x 10 | 6,00 x 6,00 | 4,48 | Painel | 65,86 |
Q 335 | 15 x 15 | 8,00 x 8,00 | 5,37 | Painel | 78,94 |
Q 396 | 10 x 10 | 7,10 x 7,10 | 6,28 | Painel | 92,32 |
Q 503 | 10 x 10 | 8,00 x 8,00 | 7,97 | Painel | 117,16 |
Q 636 | 10 x 10 | 9,00 x 9,00 | 10,09 | Painel | 148,32 |
Q 785 | 10 x 10 | 10,00 x 10,00 | 12,46 | Painel | 183,16 |
Tela Top - Dimensão | |||||
Desig. | Espac. Fios (cm) | Diâmetro dos Fios (mm) | Peso | Painel | Peso |
LG x TR | LG x TR | Kg/m² | Kg/r/p | ||
EQ-45 | 20 x 20 | 3,40 x 3,40 | 0,71 | P. 2x3 | 4,26 |
EQ-61 | 15 x 15 | 3,40 x 3,40 | 0,97 | P. 2x3 | 5,82 |
EQ-92 | 15 x 15 | 4,20 x 4,20 | 1,48 | P. 2x3 | 8,88 |
EQ-113 | 10 x 10 | 3,80 x 3,80 | 1,80 | P. 2x3 | 10,77 |
EQ-138 | 10 x 10 | 4,20 x 4,20 | 2,20 | P. 2x3 | 13,20 |
